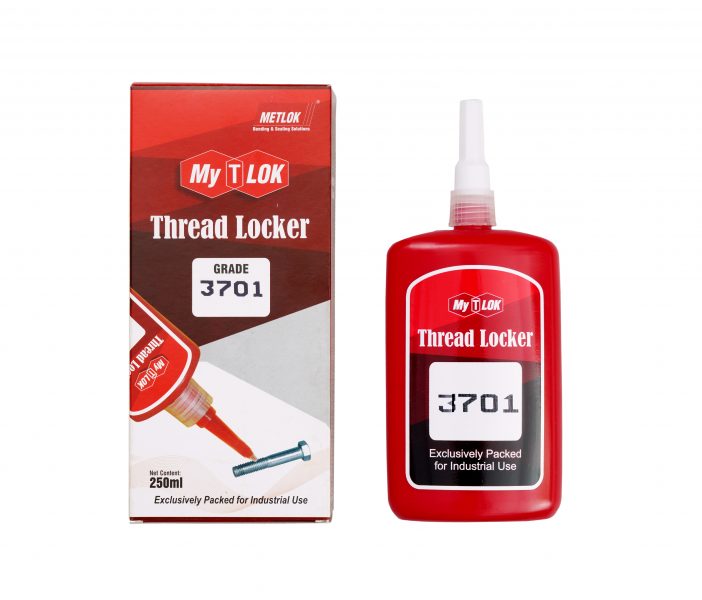

My-T-Lok 3701

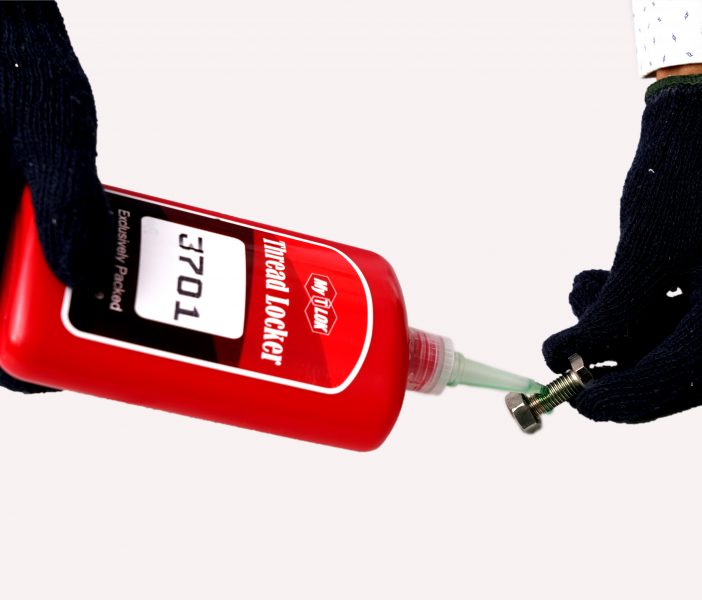

My-T-Lok® 3701 is an anaerobic thread locker designed for permanent locking and sealing of threaded fasteners.

It is particularly used for locking and sealing of large bolts and studs (M 10 and larger).

  • High strength
  • Service temperature: -50°C to 200°C

Pack Size:

My-T-Lok® 3701 is ideally available in

  • 50 ml Bottle

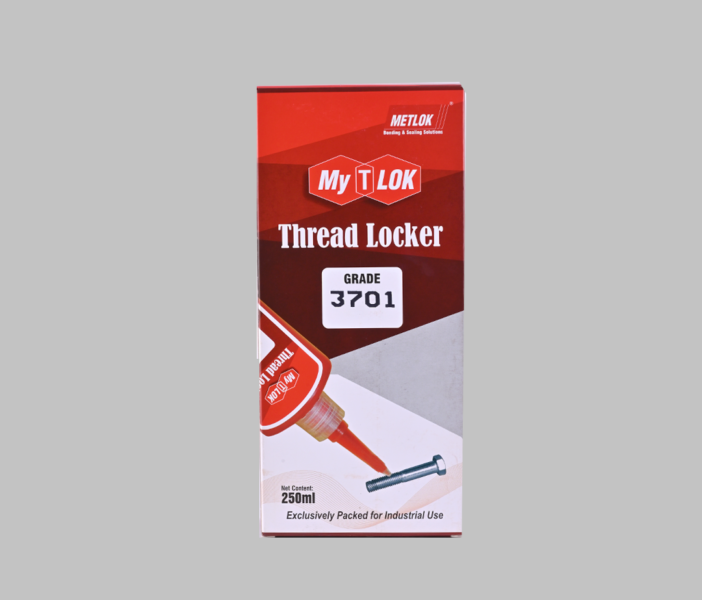

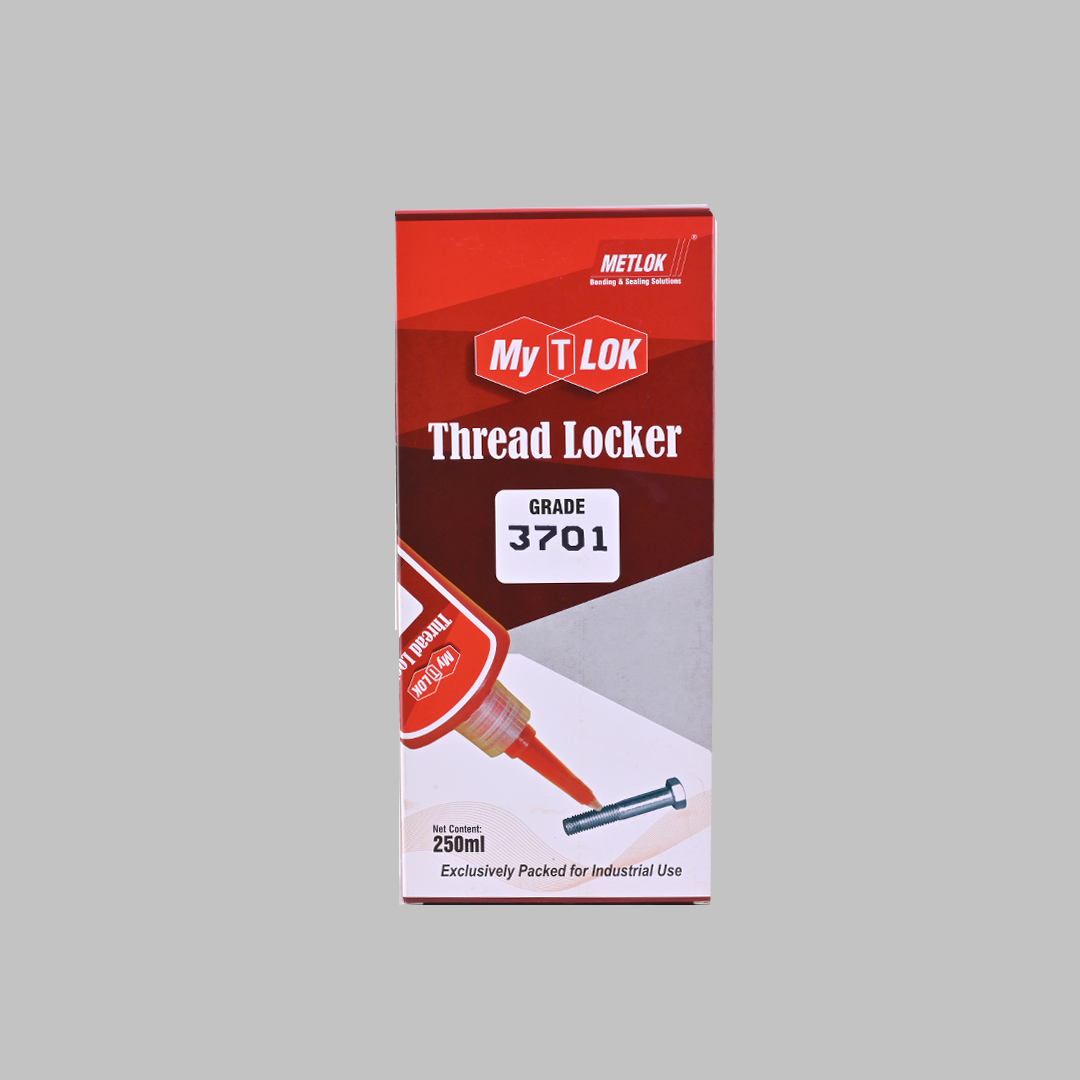

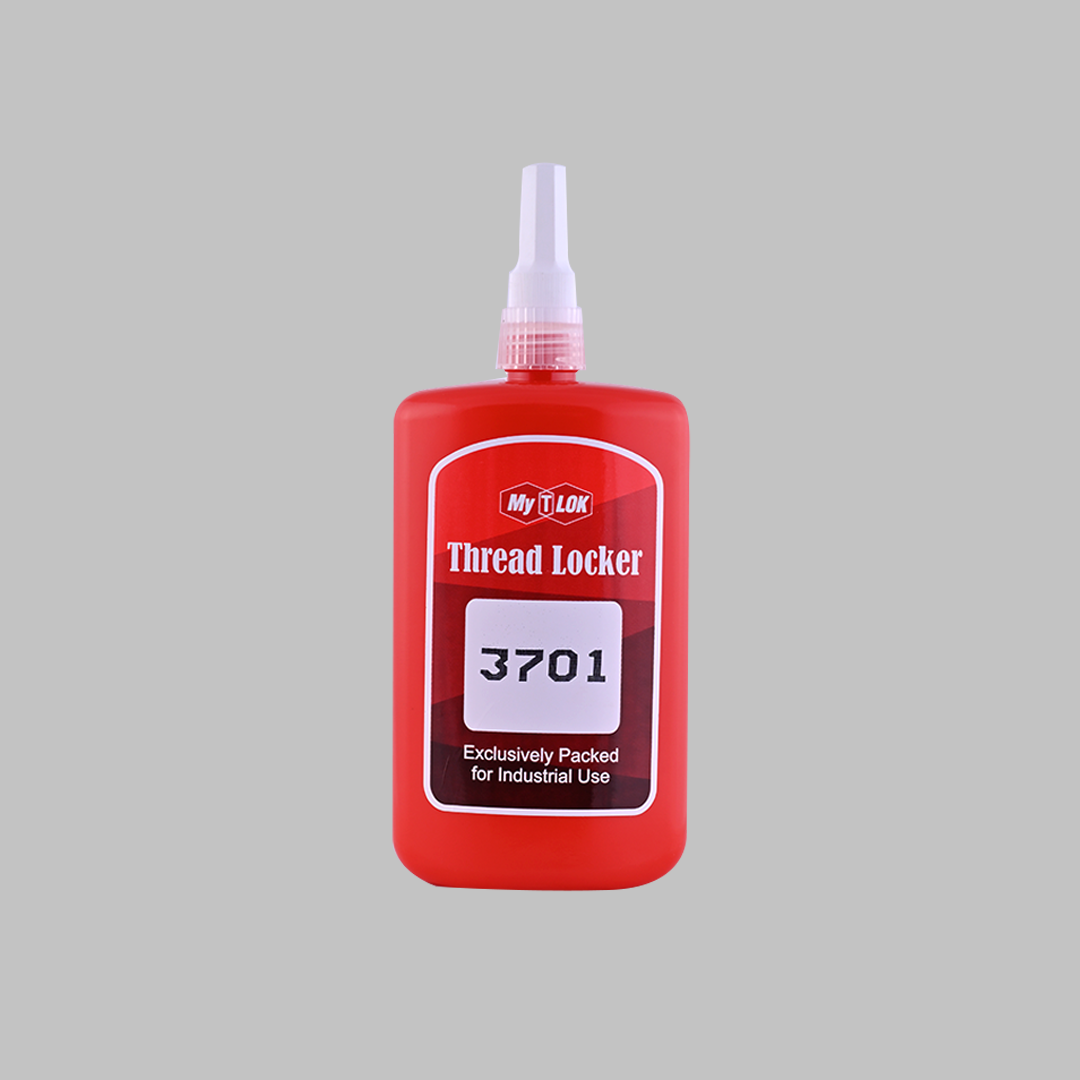

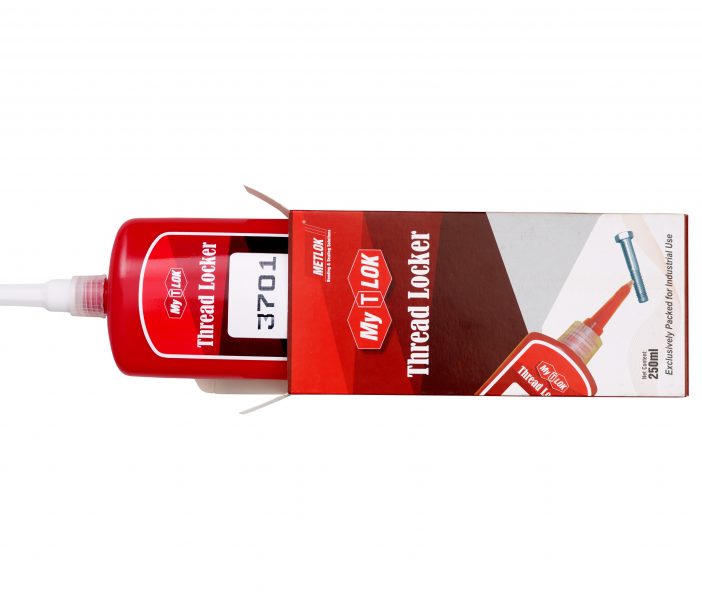

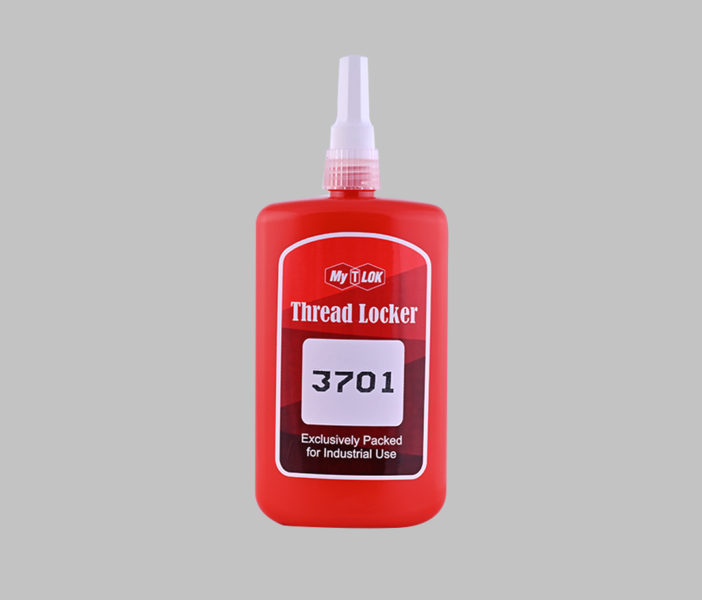

  • 250 ml Bottle

TDS : Download   Enquire Now

-

Description

Product Features & Benefits

 Cures to a hard solid when confined in the absence of air between close fitting metal surfaces
 Locking of bolts in different gearbox assembly.
 Excellent Strength at Higher Temperatures.
 Bonds well even in the presence of oils like engine oil, etc. at high temperatures.

Specification

Sr No Properties Value
1.) Appearance Green
2.) Strength High
3.) Specific Gravity @ 25±2°C 1.04
4.) Breakaway Torque, BIS 13055

M10 N&B

 40-60 N-m
5.) Prevail Torque BIS 13055

M10 N&B

 ≥ 30 N-m
6.) Compressive Shear Strength, BIS 13055 20-30 N/mm2
7.) Viscosity @ 25±2°C, Brookfield, Spindle #3, Speed 20 rpm 2200 – 3000 cP
8.) Cure time 24 hrs
