Description
Product Features & Benefits
Good flow properties makes it suitable for mould and parts with complex shape and deep undercuts.
My-T-Sil® 3015 (A & B) is a 2-component silicone elastomer system commonly used for mould making application.
- Faster curing time
- Room temperature curing
- High elongation and flexibility
Pack Size:

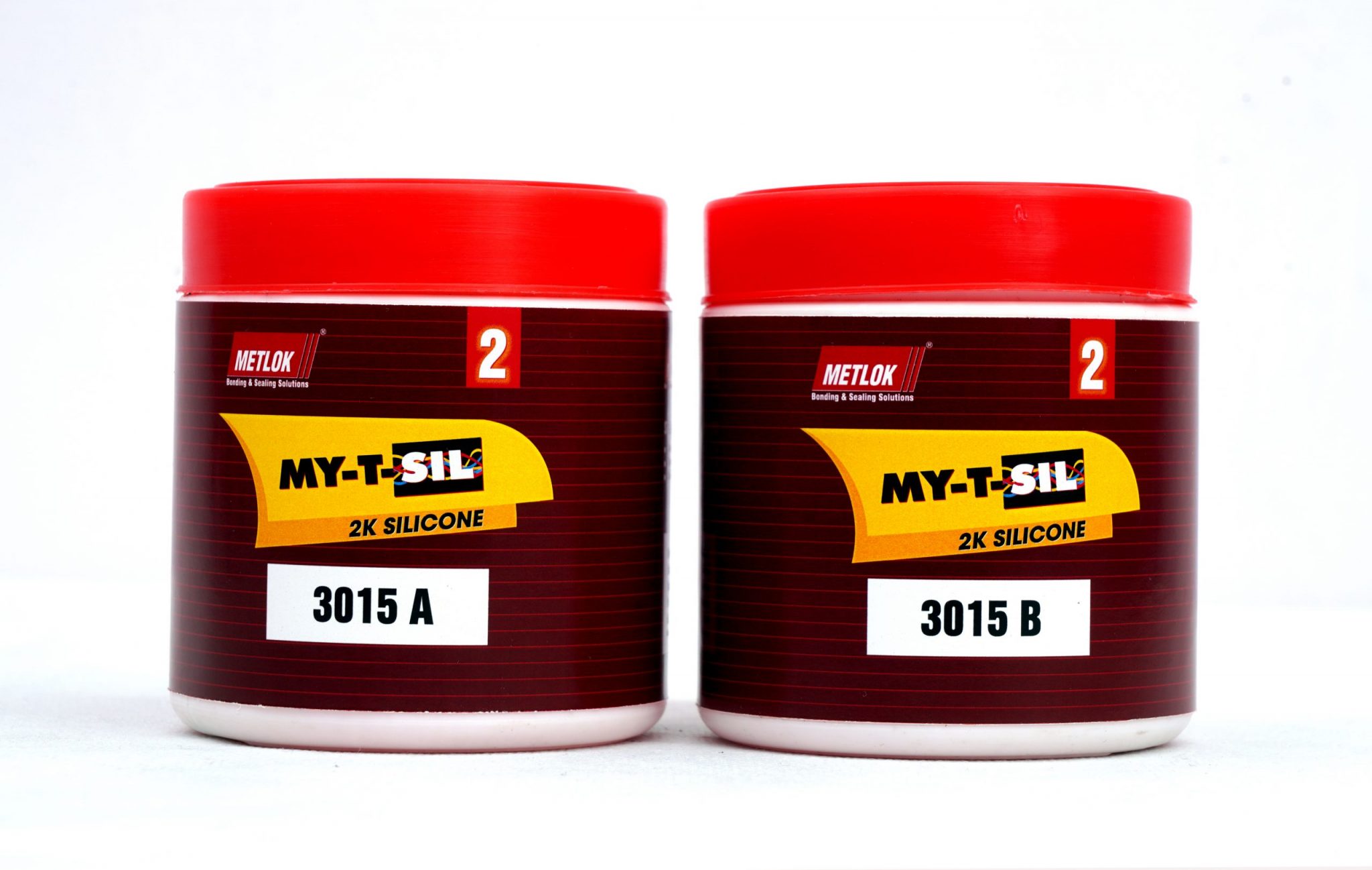

My-T-Sil® 3015 (A&B) is supplied in kits consisting of 2 packages containing the weight of Parts ‘A’ and ‘B’ as per the ratio.
Specification
| Sr No | Properties | Value |
|---|---|---|
| 1.) | Appearance:
Resin Hardener Mix |
White Clear Off-white |
| 2.) | Specific Gravity @25 °C
Part A Part B |
1.2
1.0 |
| 3.) | Viscosity, Brookfield DV1 @25±2oC, Spindle no 4, Speed 20 rpm
Part A Part B |
45000-55000 cP
30-60 cP |
| 4.) | Mix Ratio | 100:5 |
| 5.) | Temperature Resistance | -50 – 250 °C |
| 6.) | Pot Life @ 25± 2 °C/ 50 ± 5% RH | 50-70 Minutes |
| 7.) | Hardness, Durometer- Shore A, ASTM D 2240
@ 25± 2 °C/ 50 ± 5% RH |
30 ± 3 |
| 8.) | Tensile Strength ASTM D412 | ≥ 1 N/mm2 |
| 9.) | Elongation ASTM D412 | ≥ 350 % |
| 10.) | Tear strength, ASTM D624 | 4.11 N/mm2 |
