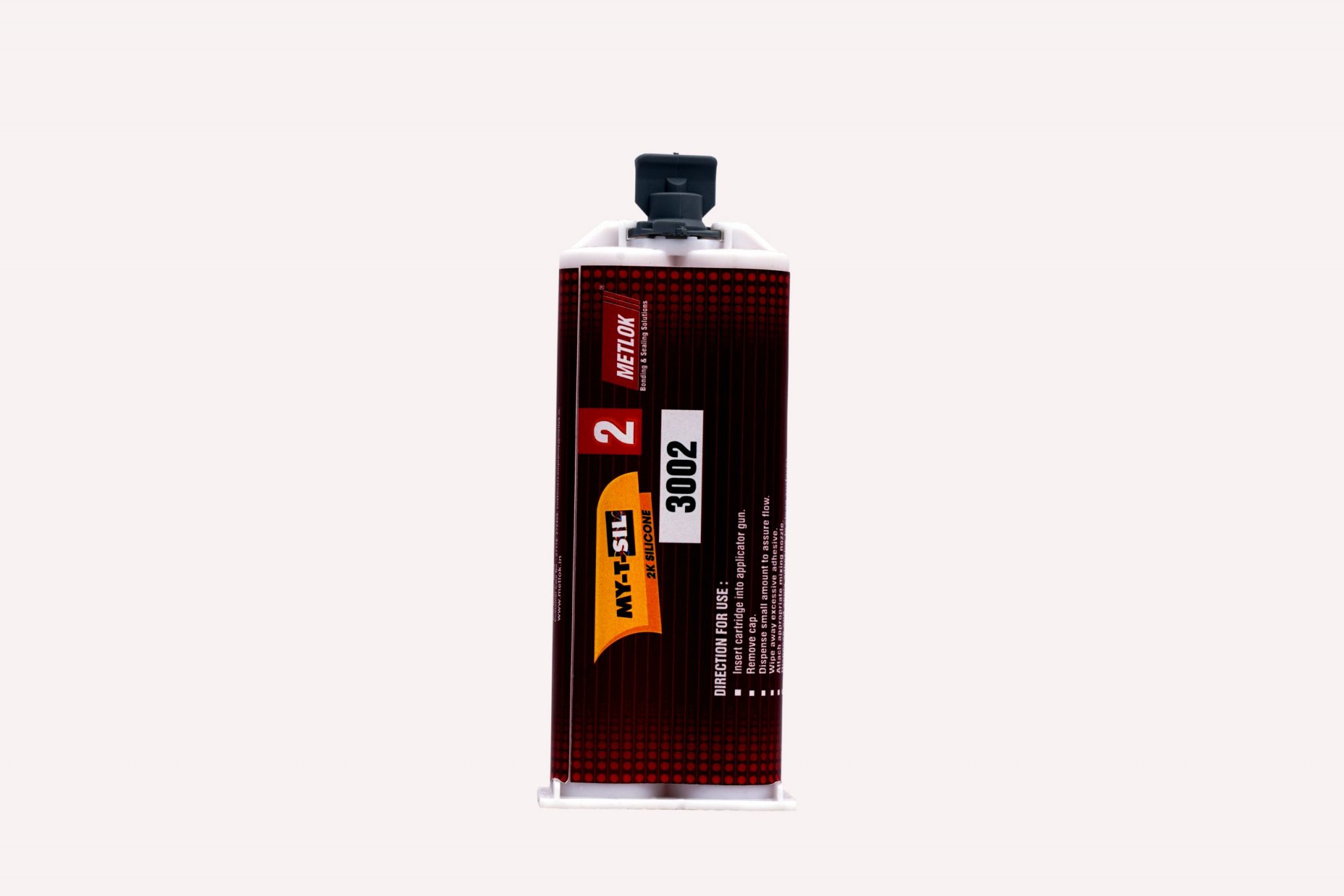

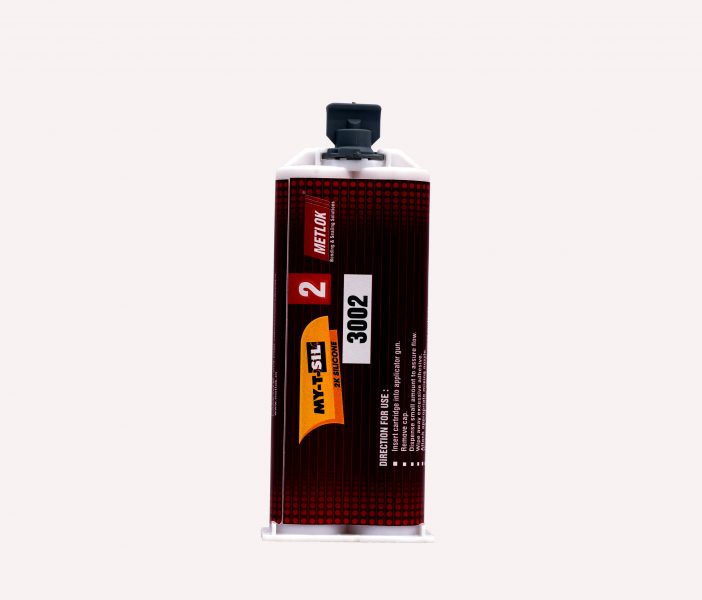

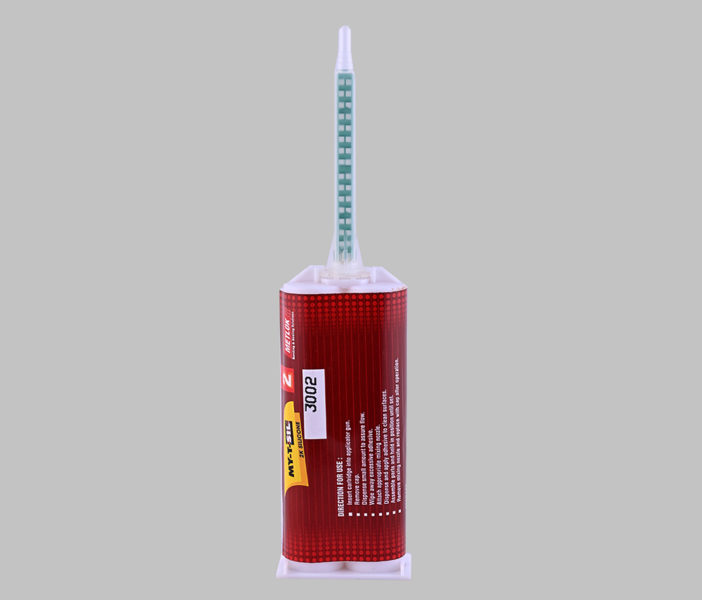

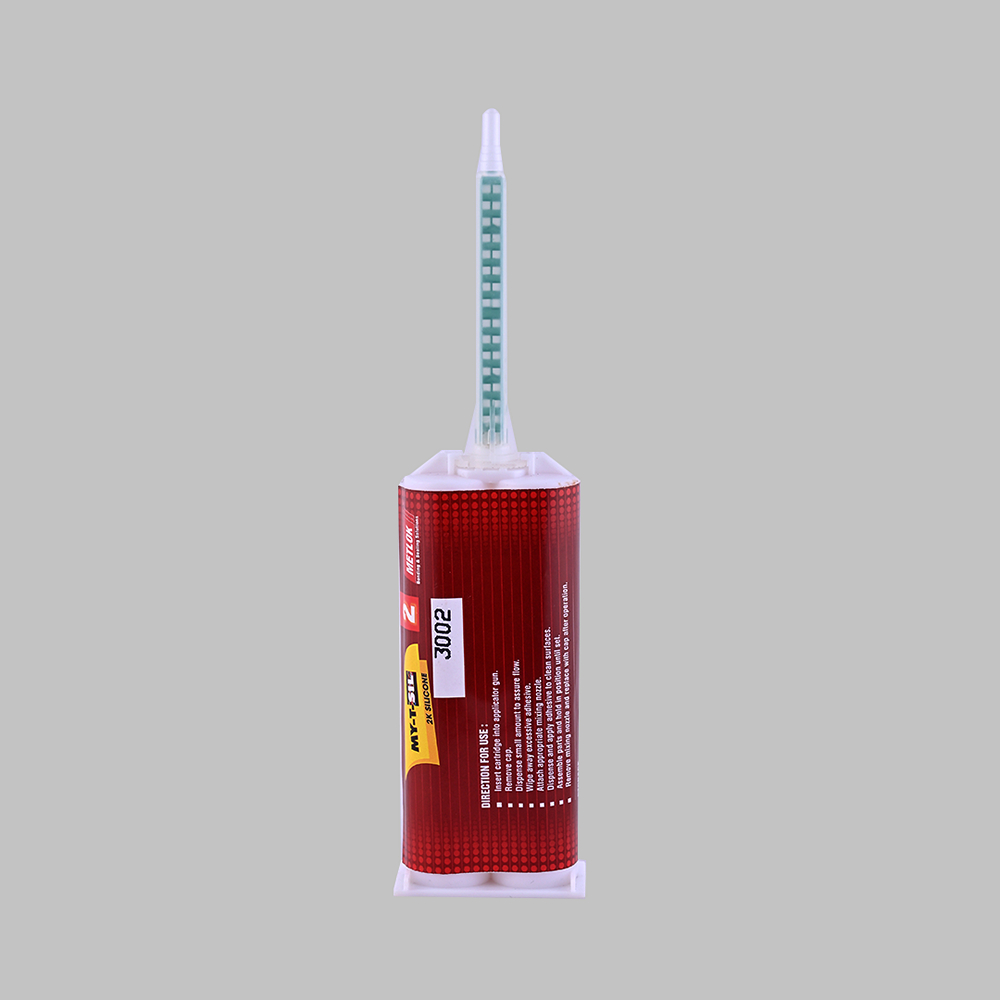

My-T-Sil 3002

My-T-Sil 3002

My-T-Sil® 3002 (A & B) is a 2-component, thermally conductive silicone elastomer system.

  • It is specially designed for protection of electrical and electronic components.
  • The cured product is a flexible, medium to high modulus elastomer.

Pack Size:

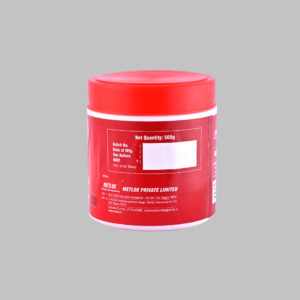

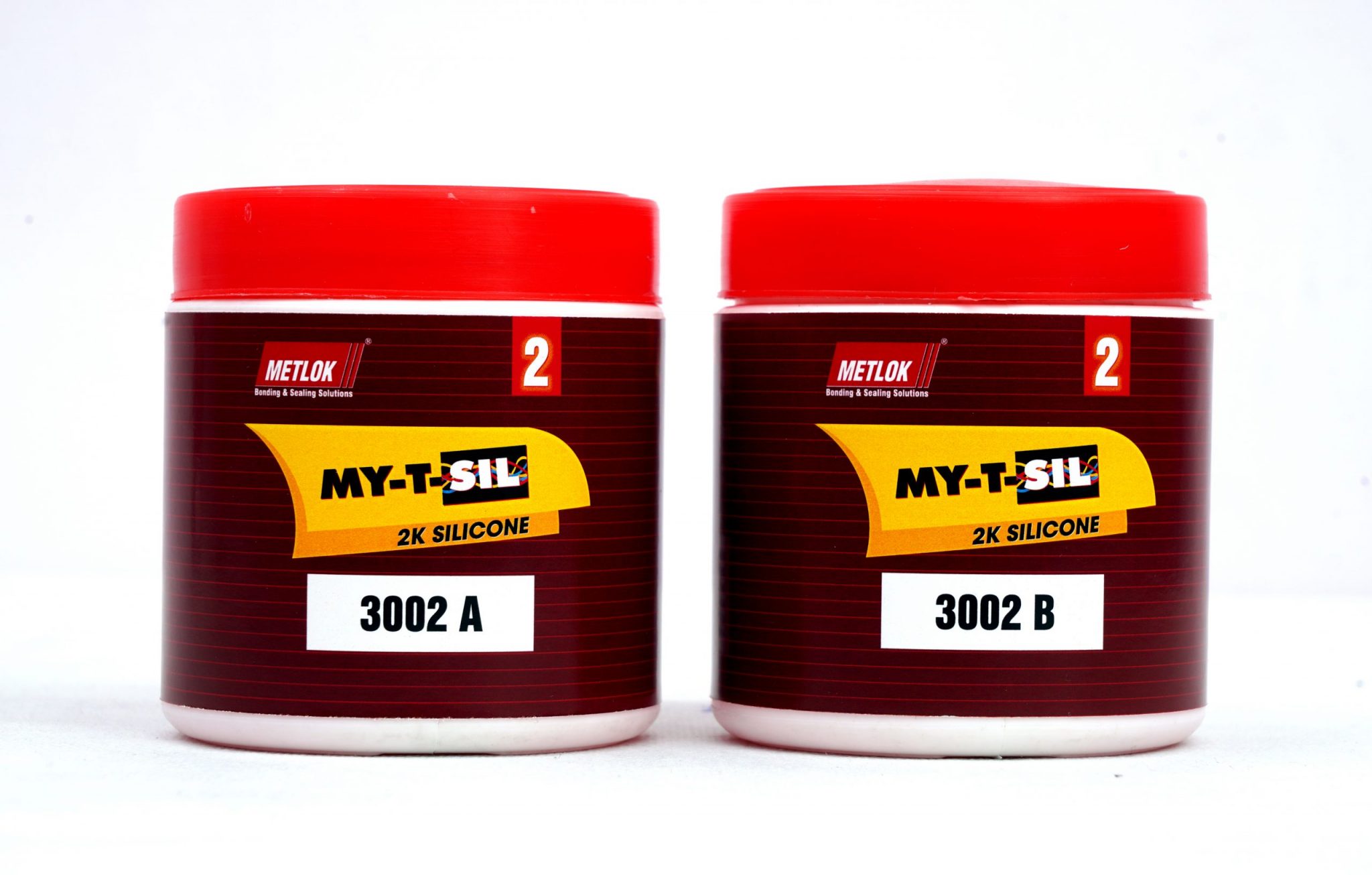

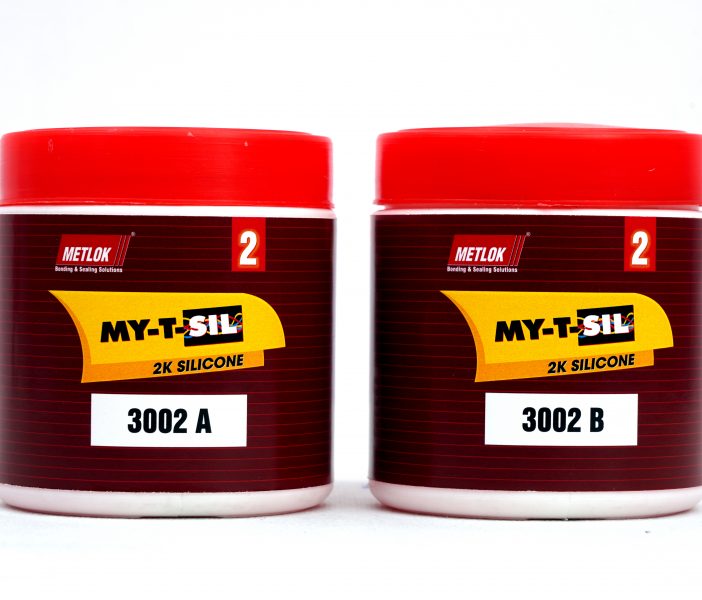

My-T-Sil® 3002 (A&B) is supplied in kits consisting of 2 packages containing the weight of Parts ‘A’ and ‘B’ as per the ratio.

TDS : Download   Enquire Now

Product Features & Benefits

 Moderate thermal conductivity
 Low viscosity
 Room temperature curing
 Flow able grade for fast processing

Specification

Sr No Properties Value
1.) Color

Resin

Hardener

Black

Black

Off-White

2.) Specific Gravity @25 °C

Part A

Part B

1.39

1.37

3.) Viscosity, Brookfield DV1 @25±2oC, Spindle no 4, Speed 20 rpm

Part A

Part B

18000-22000 cP

3000-5000 cP

4.) Mix Ratio 1:1
5.) Temperature Resistance -50 – 250 °C
6.) Pot Life @ 25± 2 °C/ 50 ± 5% RH 25-35 Minutes
7.) Hardness, Durometer- Shore A, ASTM D 2240

@ 25± 2 °C/ 50 ± 5% RH

22 ± 3
8.) Tensile Strength ASTM D412 NA
9.) Elongation ASTM D412 NA
10.) Hardness (Durometer Shore A), ASTM D2240 NA
