My-T-Sil® 3005 (A & B) is a 2-component, thermally conductive silicone elastomer system specially designed for protection of electrical and electronic components.

  • Moderate thermal conductivity
  • Low viscosity
  • Room temperature curing
  • Flow able grade for fast processing

Pack Size:

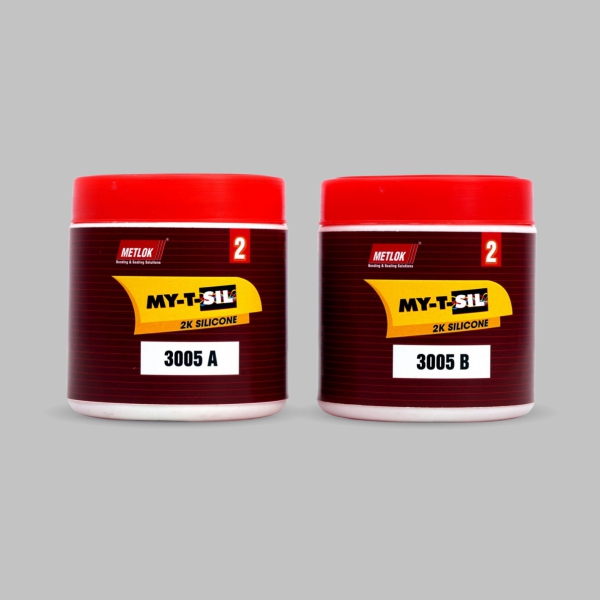

My-T-Sil® 3005 (A&B) is supplied in kits consisting of 2 packages containing the weight of Parts ‘A’ and ‘B’ as per the ratio.

TDS : Download   Enquire Now

Product Features & Benefits

 Encapsulation in electrical and electronic components
 Potting application

Specification

Sr No Properties Value
1.) Color

Resin

Hardener

 Light Grey

Grey

Off-White
2.) Specific Gravity @25 °C

Part A

Part B

 2.96

1.47
3.) Viscosity, Brookfield DV1 @25±2 oC, Spindle no 6, Speed 20 rpm

Part A

Part B

 25000-35000 cP

25000-35000 cP
4.) Mix Ratio 1:1
5.) Temperature Resistance -50 – 250 °C
6.) Pot Life @ 25± 2 °C/ 50 ± 5% RH 6 hours
7.) Hardness, Durometer- Shore A, ASTM D 2240

@ 25± 2 °C/ 50 ± 5% RH

 60 ± 3
8.) Tensile Strength ASTM D412 NA
9.) Elongation ASTM D412 150-180 %
