PRECOTE® 30

PRECOTE® 30

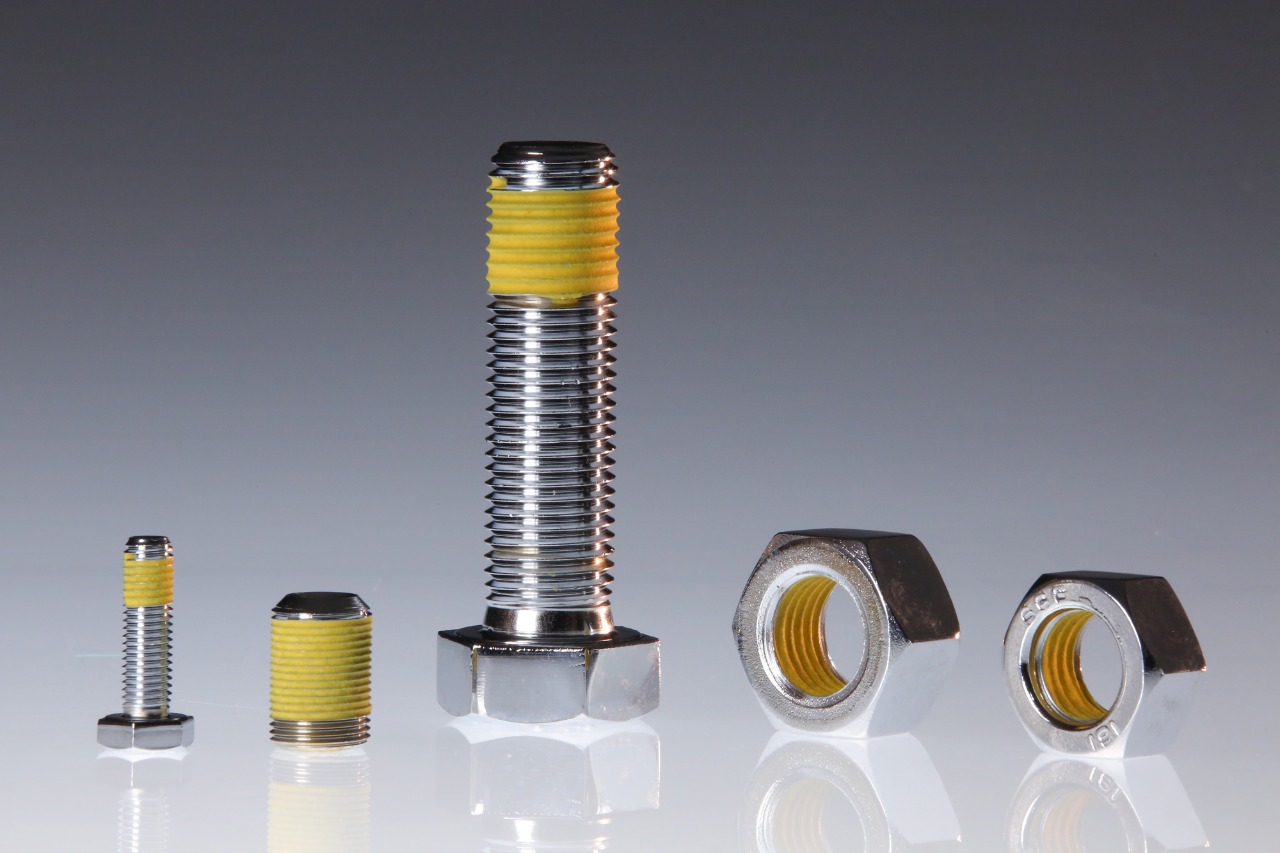

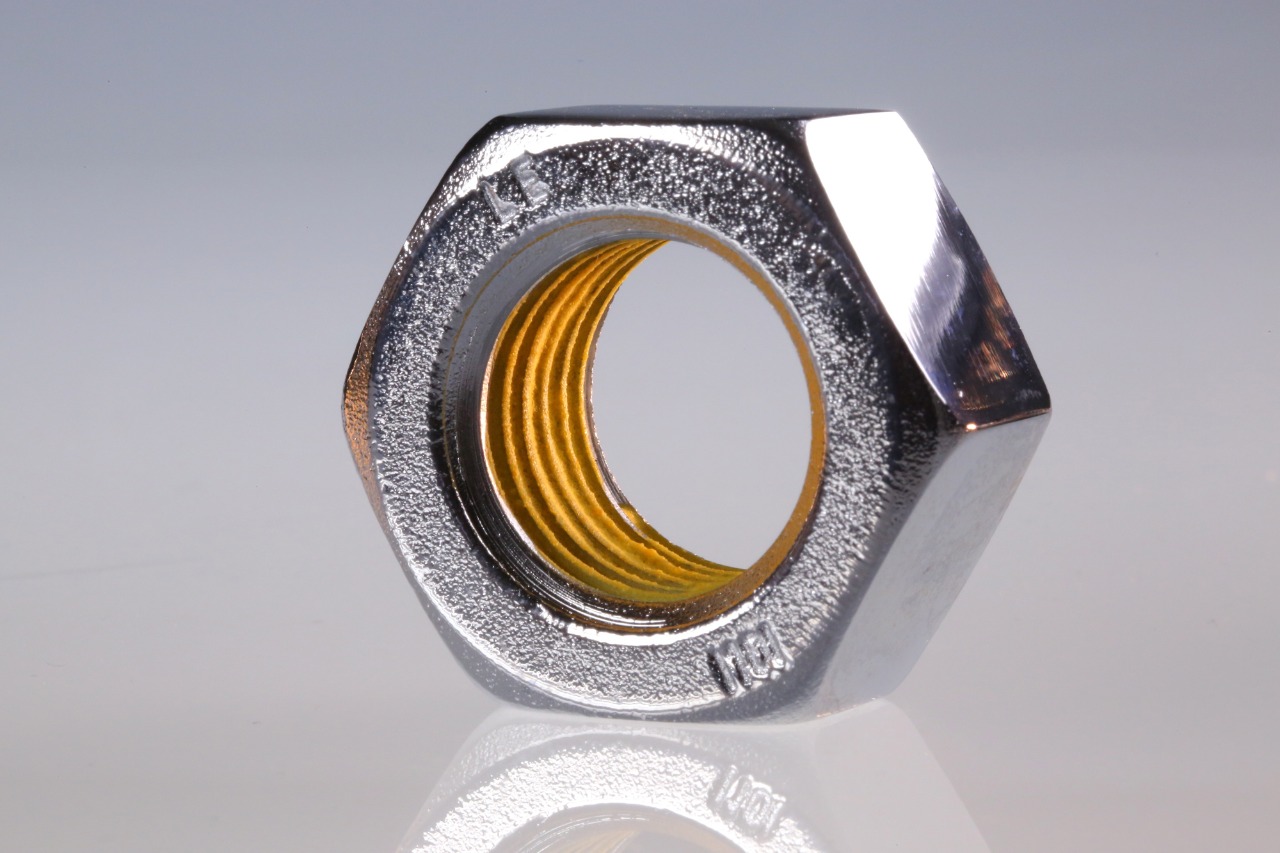

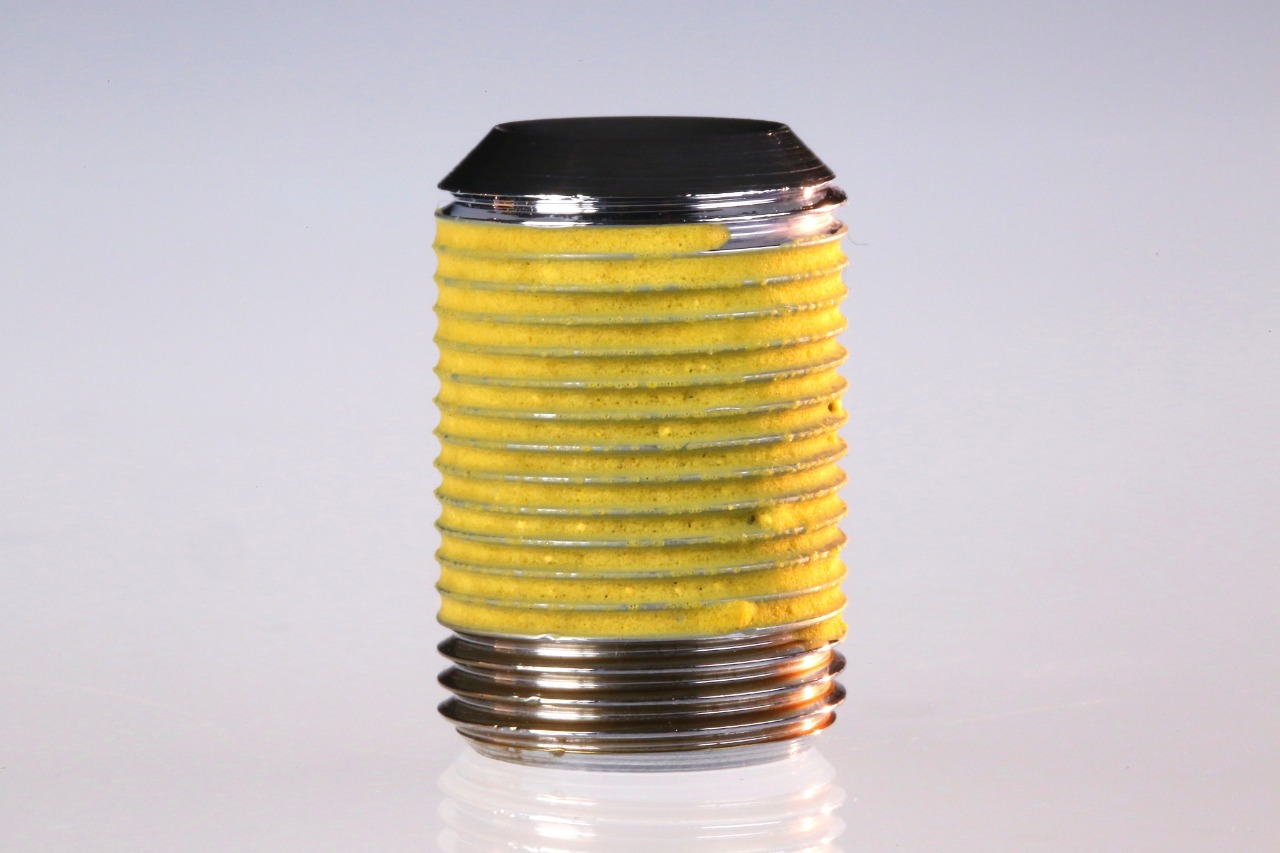

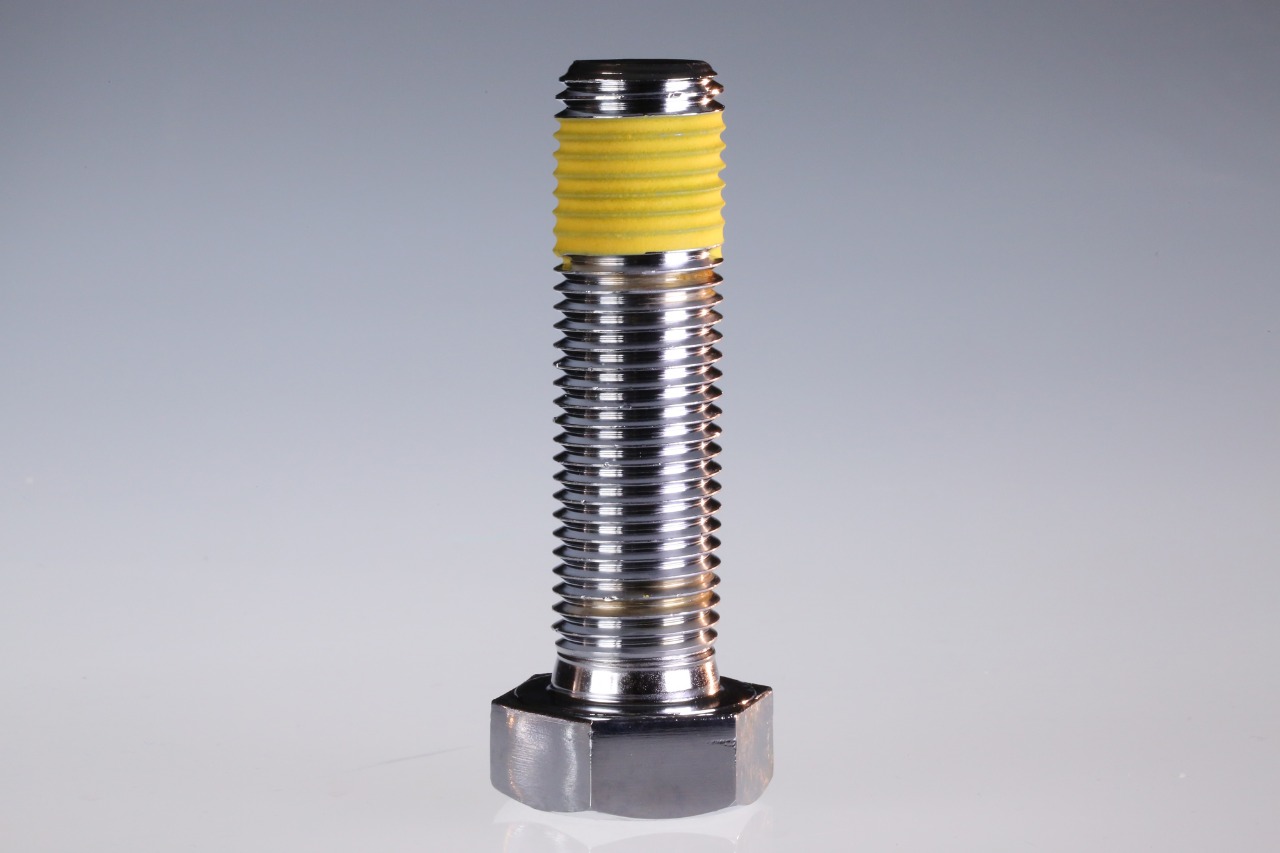

Precote® is the world-leading dual microencapsulated pre-applied adhesives from OmniTECHNIK® and it is authorized to be processed exclusively in India at Metlok Precoat Services Pvt. Ltd.. Precote® products are varnish-like, solvent free coating systems based on micro-encapsulated acrylates for sealing and locking of threaded parts. Its characteristics as a locking and sealing element become effective only when the capsules are ruptured by shear and pressure stress and the adhesive is allowed to cure. Precote® products are widely used in automobile, bicycle, machinery, appliance electronics, telecommunication, high speed railway, and power transmission system.

Product Features & Benefits

  • The only dual microencapsulated self-locking and sealing product in the industry
  • No additional locking device needed
  • Precise coating coverage
  • Increases productivity at the assembly line
  • Complies with and exceeds IFI-125 and IFI-525 and most automobile specifications
  • Can be applied on internal or external threaded fasteners
  • Ready for assembly
  • Long product shelf life (unaffected by atmospheric condition)
  • Non-tacky finish, dry-to-the-touch
  • Non-toxic, assembler friendly
  • Environment-friendly

TDS : Download   Enquire Now

Industrial Specifications and Standards

Company Specification Company Specification
Deutsches Institut für Normung (DIN) DIN 267-28

Specification

Properties Description Properties Description
Color Yellow Breakaway torque*(kgf-cm) > 102
Thread friction 0.10 ~ 0.15 Prevailing-off torque*(kgf-cm) < 561
Sealing capability < 205 bar (3600 psi) Shelf life 4 years at max. 30℃ and max. 65% RH
Operation temperature -60℃ ~150℃ Fixture time (Start hardening) 10 min
Strength level Medium Fully cured time 24 hrs
Applicable configuration Recommended for threads >M6 or pitch >1mm; for threads ≤ M6 or pitch ≤ 1mm, precote®30-8 is recommended
